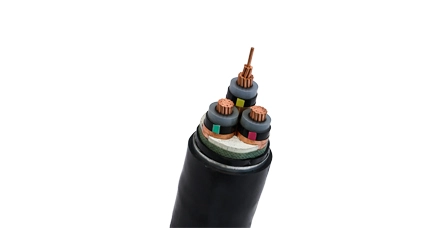

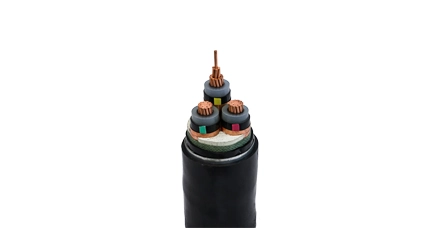

Copper Tape Screen Medium Voltage Cable
| Cross-sectional Area (mm²) | Average overall diameter (mm) | Core | Reference weight (kg/km) | Conductor Resistance 20ºC Max (Ω/km) | |
| 50 | - | 26 | 1 | 1003 | ≤0.387 |
| 70 | - | 27 | 1 | 1233 | ≤0.268 |
| 95 | - | 29 | 1 | 1520 | ≤0.193 |
| 120 | - | 30 | 1 | 1799 | ≤0.153 |
| 150 | - | 32 | 1 | 2088 | ≤0.124 |
| 185 | - | 34 | 1 | 2482 | ≤0.0991 |
| 240 | - | 36 | 1 | 3080 | ≤0.0754 |
| 300 | - | 38 | 1 | 3674 | ≤0.0601 |
| 400 | - | 41 | 1 | 4572 | ≤0.0470 |
| 500 | - | 44 | 1 | 5890 | ≤0.0366 |
| 50 | - | 52 | 3 | 3318 | ≤0.727 |
| 70 | - | 55 | 3 | 4104 | ≤0.524 |
| 95 | - | 59 | 3 | 5049 | ≤0.387 |
| 120 | - | 62 | 3 | 5937 | ≤0.268 |
| 150 | - | 66 | 3 | 6896 | ≤0.193 |
| 185 | - | 69 | 3 | 8141 | ≤0.153 |
| 240 | - | 75 | 3 | 10075 | ≤0.124 |
| 300 | - | 80 | 3 | 12004 | ≤0.0991 |
| 400 | - | 86 | 3 | 14887 | ≤0.0754 |
Description Of Copper Tape Screen Medium Voltage Cable
Rated Temperature: 90℃
Rated Voltage: up to 26/35kV
Reference Standard: IEC60502-2
Conductor: Shaped and circular stranded copper conductors
Insulated: Insulated with XLPE
Sheathed:PVC
Screen: Copper Tape
Copper Tape Screen Medium Voltage Cable utilize a continuous copper tape wrapped around the insulation layer to provide uniform electromagnetic shielding, effectively minimizing electrical interference and ensuring stable signal transmission. This design is ideal for fixed installations in industrial environments where high shielding efficiency and precise voltage distribution are critical. The tape’s seamless structure enhances resistance to partial discharges and offers robust mechanical protection against minor impacts. However, its rigidity may limit flexibility, making it less suitable for dynamic applications requiring frequent bending.
-
