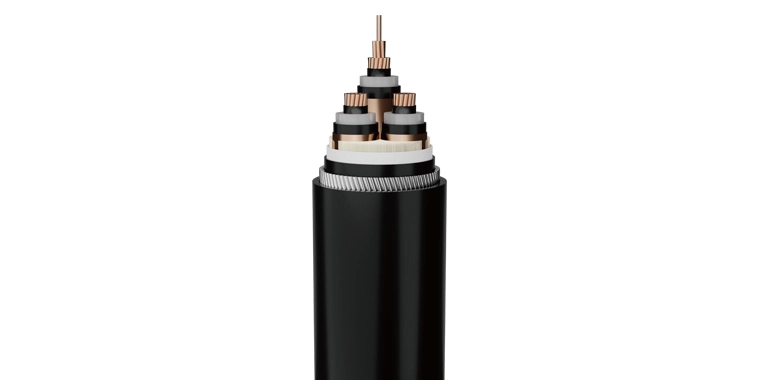

Steel Wire Armoured Medium Voltage Cable
| Cross-sectional Area (mm²) | Average overall diameter (mm) | Core | Reference weight (kg/km) | Conductor Resistance 20ºC Max (Ω/km) | |
| 50 | - | 26 | 1 | 1003 | ≤0.387 |
| 70 | - | 27 | 1 | 1233 | ≤0.268 |
| 95 | - | 29 | 1 | 1520 | ≤0.193 |
| 120 | - | 30 | 1 | 1799 | ≤0.153 |
| 150 | - | 32 | 1 | 2088 | ≤0.124 |
| 185 | - | 34 | 1 | 2482 | ≤0.0991 |
| 240 | - | 36 | 1 | 3080 | ≤0.0754 |
| 300 | - | 38 | 1 | 3674 | ≤0.0601 |
| 400 | - | 41 | 1 | 4572 | ≤0.0470 |
| 500 | - | 44 | 1 | 5890 | ≤0.0366 |
| 50 | - | 52 | 3 | 3318 | ≤0.727 |
| 70 | - | 55 | 3 | 4104 | ≤0.524 |
| 95 | - | 59 | 3 | 5049 | ≤0.387 |
| 120 | - | 62 | 3 | 5937 | ≤0.268 |
| 150 | - | 66 | 3 | 6896 | ≤0.193 |
| 185 | - | 69 | 3 | 8141 | ≤0.153 |
| 240 | - | 75 | 3 | 10075 | ≤0.124 |
| 300 | - | 80 | 3 | 12004 | ≤0.0991 |
| 400 | - | 86 | 3 | 14887 | ≤0.0754 |
Description Of Steel Wire Armoured Medium Voltage Cable
Rated Temperature: 90℃
Rated Voltage: up to 26/35kV
Reference Standard: IEC60502-2
Conductor: Shaped and circular stranded copper conductors
Insulated: Insulated with XLPE
Sheathed:PVC
Screen: Copper Tape
Armour:Steel wire
Steel Wire Armoured Medium Voltage Cable features a layer of galvanized steel wires wound or braided around the core, providing superior tensile strength and durability. These cables excel in high-tension applications such as vertical risers, underwater projects, or mining operations where cables are subjected to pulling forces. The open helical structure of steel wires allows slight flexibility while maintaining robust protection against crushing and impact.
+
+
+
